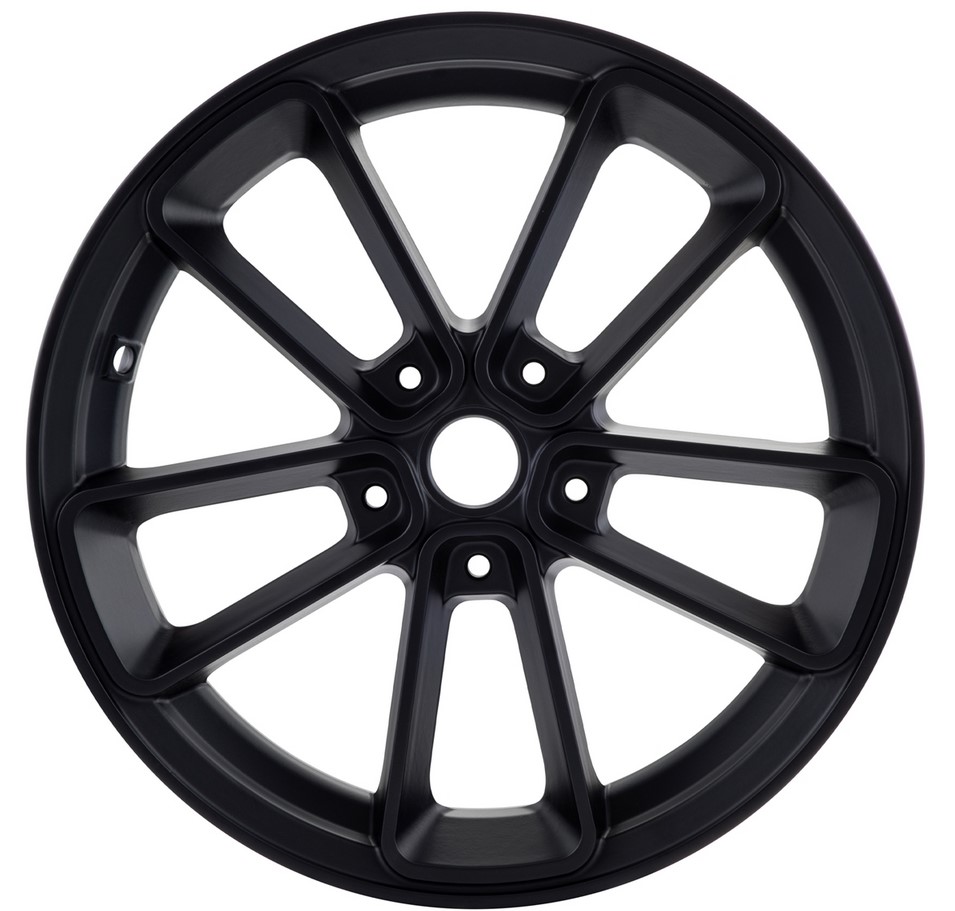

Rim front/rear 13" for Vespa GTS/GTS Super/GTV/GT 60/GT/GT L 125-300cc, black matt
Description
Product information
First existing 13" rim which may be driven with the ABE without problems on the GTS. No more legal grey areas, no more arguments with the TÜV inspectors - install the rims and the legal conversion to 13" is done. Also homologated with a 140 wide tire on the rear wheel - instead of the standard 130 tire, a 140/60-13" size tire can now be legally driven on the rear. The rims themselves are manufactured in compliance with the ETRTO (European Tyre and Rim Technical Organisation) guidelines, the industry specification for rim and tire production.
- front/rear
- 3.00 -13"
- 10 spokes
- Aluminum
- black matt
- for rear additional mounting kit is needed
- with ABE

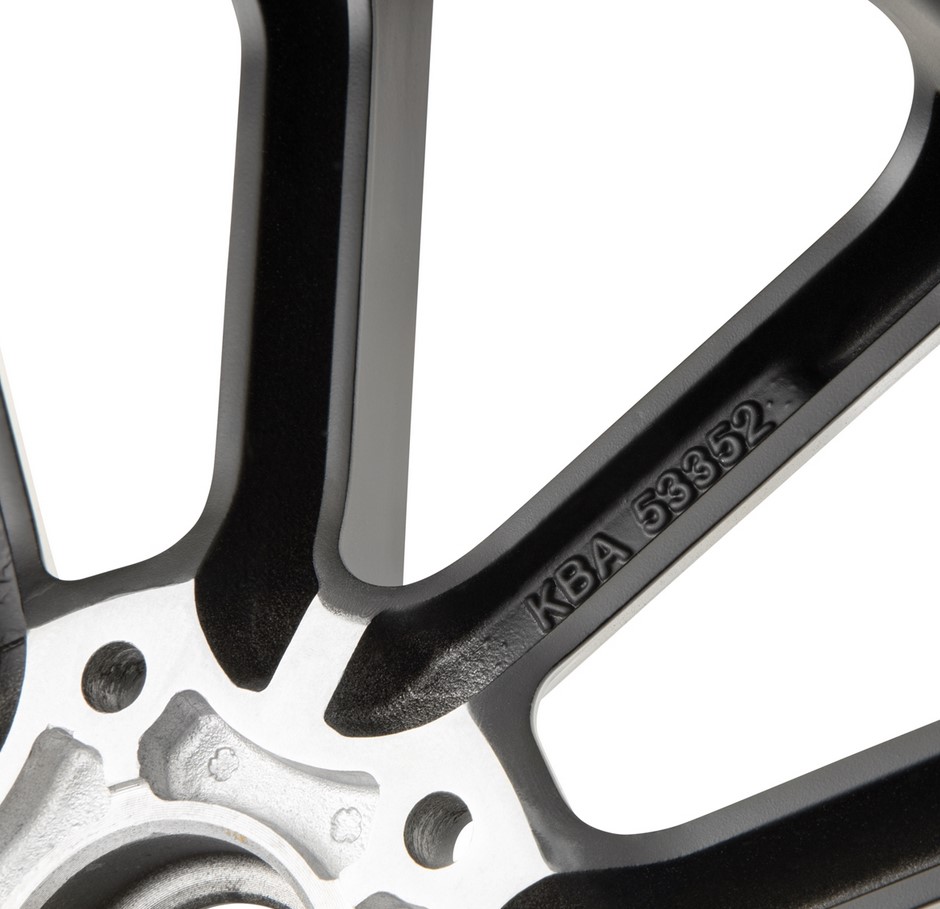

- KBA 53352
The rim is approved for the following tire sizes:
- Tire size front: 110/70-13 in combination with
- Tire size rear: 110/70-13 ww. 120/70-13 ww. 130/60-13 ww. 130/70-13 ww. 140/60-1
- Tire size front: 120/70-13 in combination with
- Rear tire size: 120/70-13 ww. 130/60-13 ww. 130/70-13 ww. 140/60-13
- Tire size front: 130/60-13 in combination with
- Rear tire size: 130/60-13 ww. 130/70-13 ww. 140/60-13
- Tire size front: 130/70-13 in combination with
- Rear tire size: 130/70-13 ww. 140/60-13
- Tire size front: 140/60-13 in combination with
- Rear tire size: 140/60-13
When using the tire 140/60-13" a tire approval of the respective tire manufacturer has to be presented. In the download area we provide in the ABE document all permissible tires including the required tire release. The latest version of the ABE can be found in the downloads. Please check before buying if the ABE is valid for the desired vehicle.
Note: By changing the tire size also changes the gear ratio of the tires which ultimately leads to a deviation of the speedometer display. Since the original speedometer deviates by up to 10% from the real value, the deviation is still within the tolerance for 12" rims with 140 tires as well as 13" rims with max. 140 tires. Actually, this is even advantageous, because with the larger tires, the speedometer display approaches the real speed
Mounting instructions:
- Front wheel: plug & play. No additional mounting kit is required.
- Rear wheel: For rear mounting, the bushing (part no.MV848039) is always required.
- For models that are equipped with ABS on the rear wheel as standard, a mounting kit (part no. MV000617) including new wheel bolts and screws for the tone wheel is required. The items are not included and must be ordered separately.
- After mounting the rims on ABS models, the ABS/ASR system should be recalibrated. Detailed instructions are available in the download area or in the user manual of the vehicle.
Manufacturer
SIP Style
|
SIP Scootershop GmbH |
