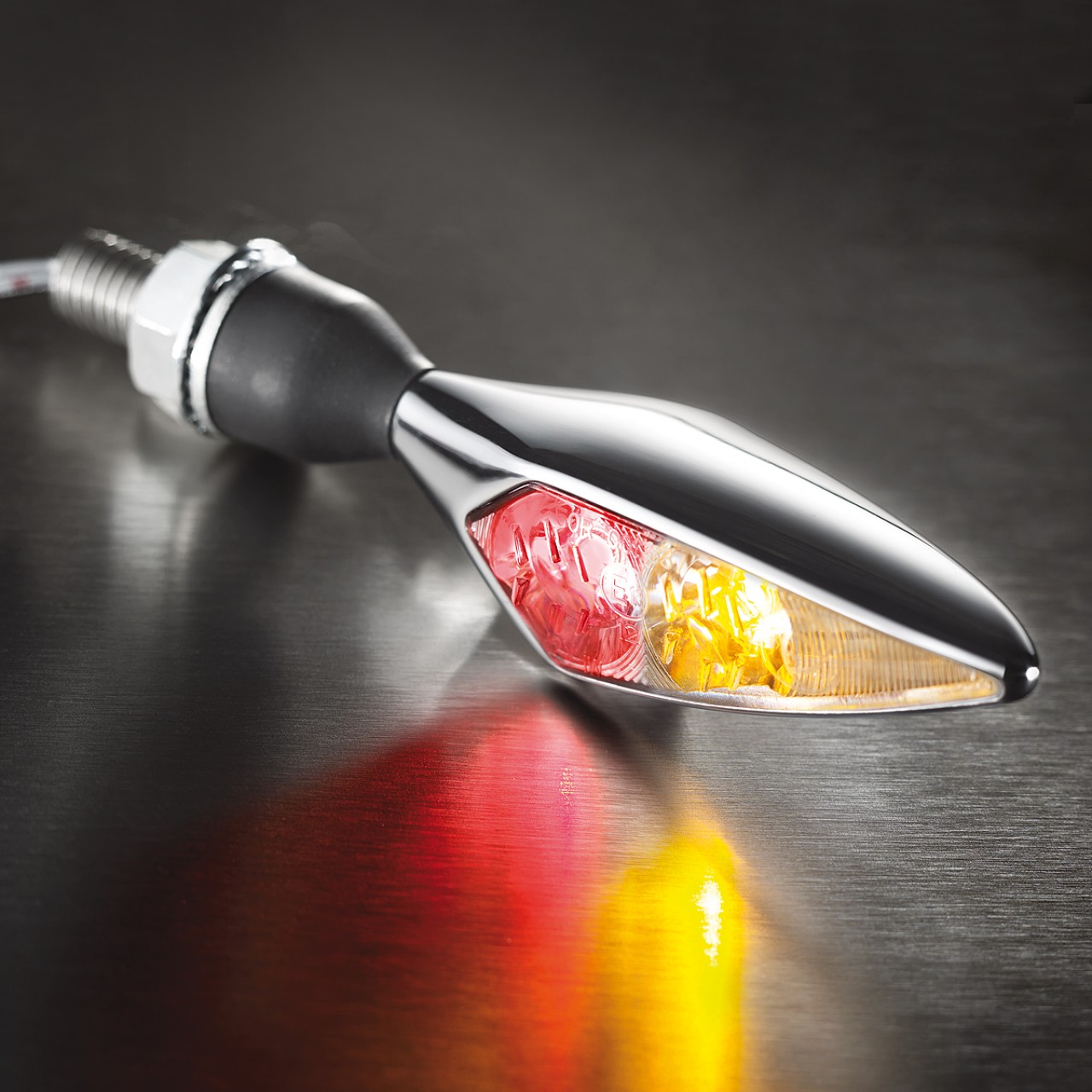

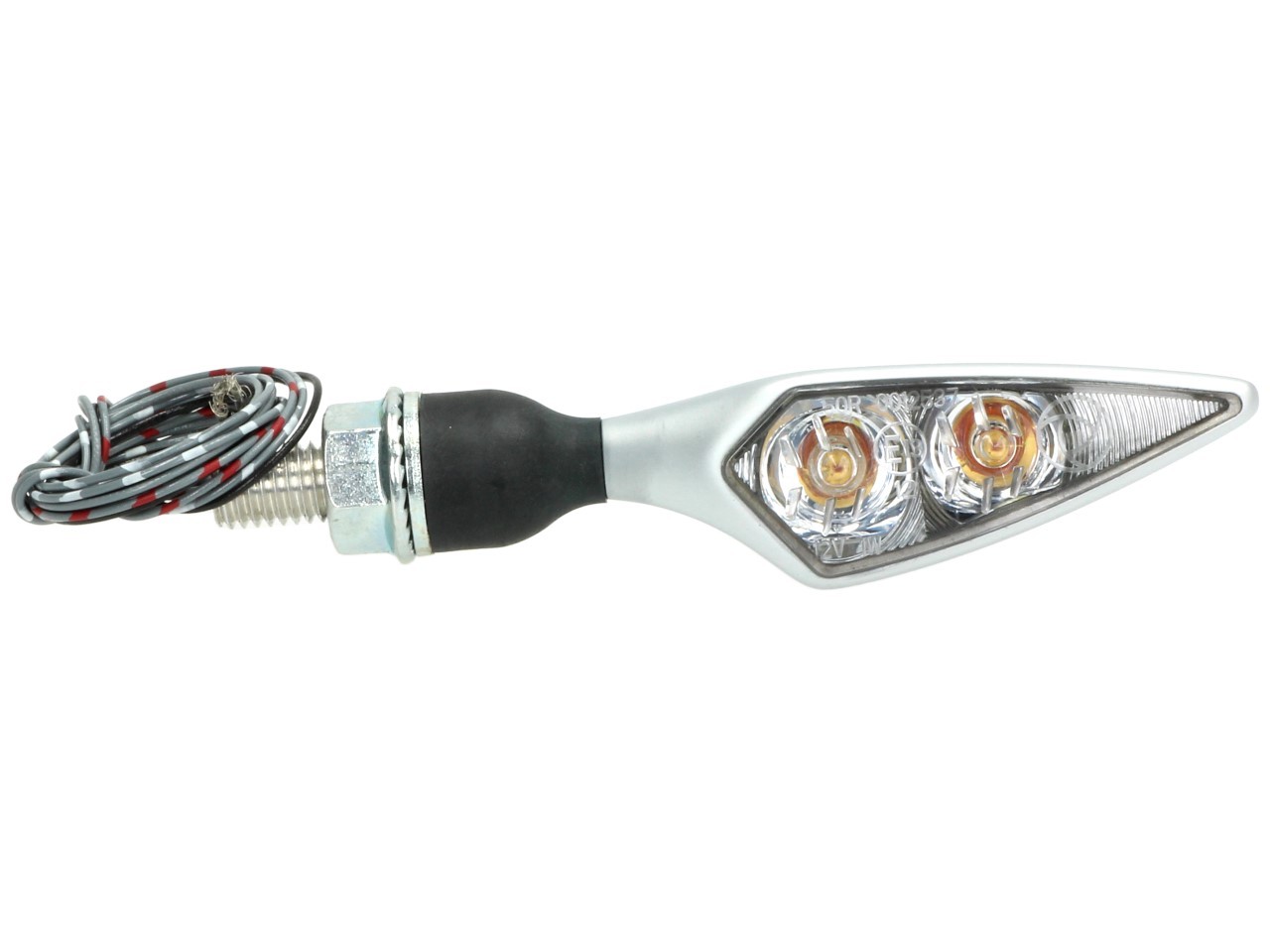

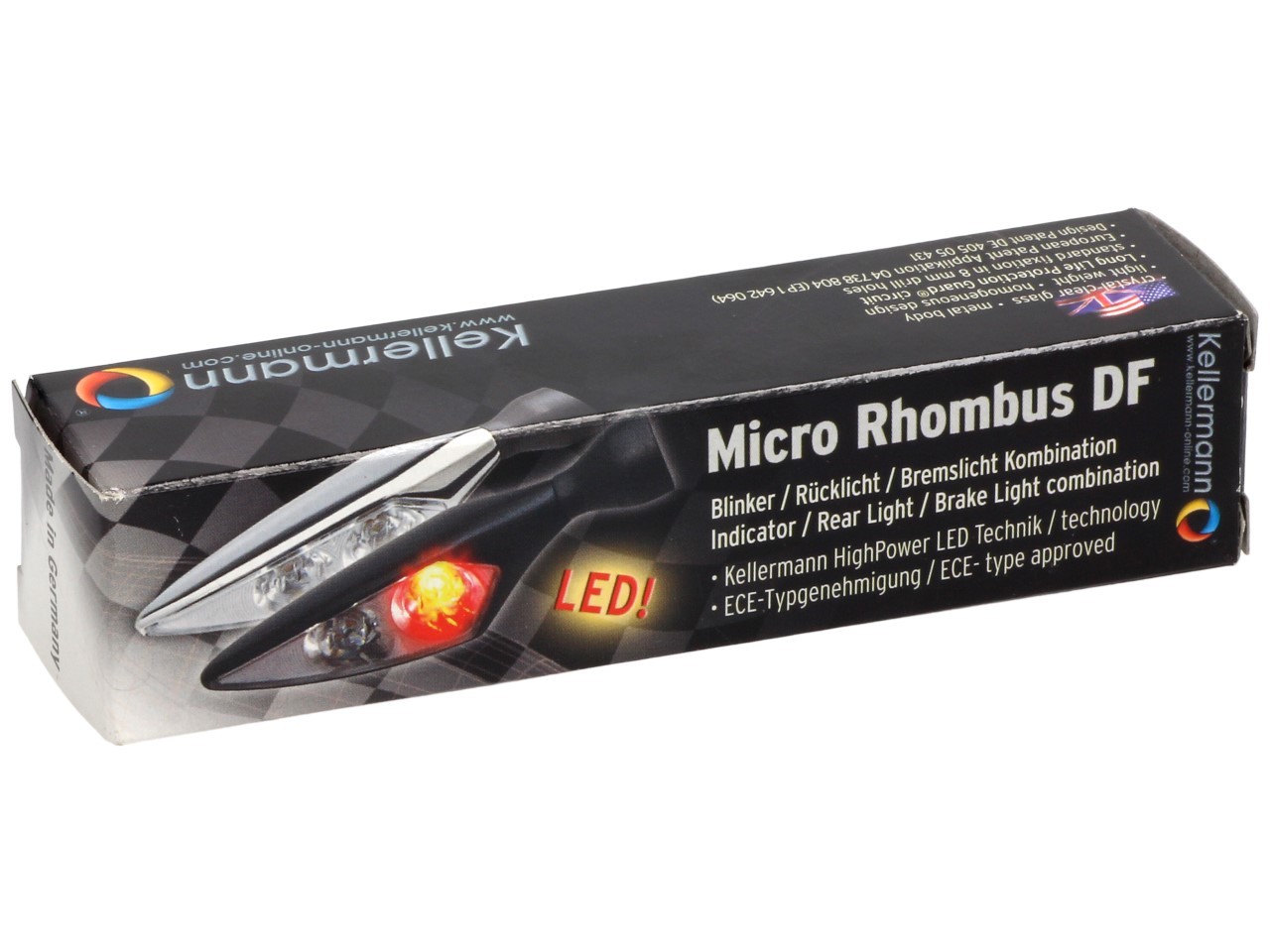

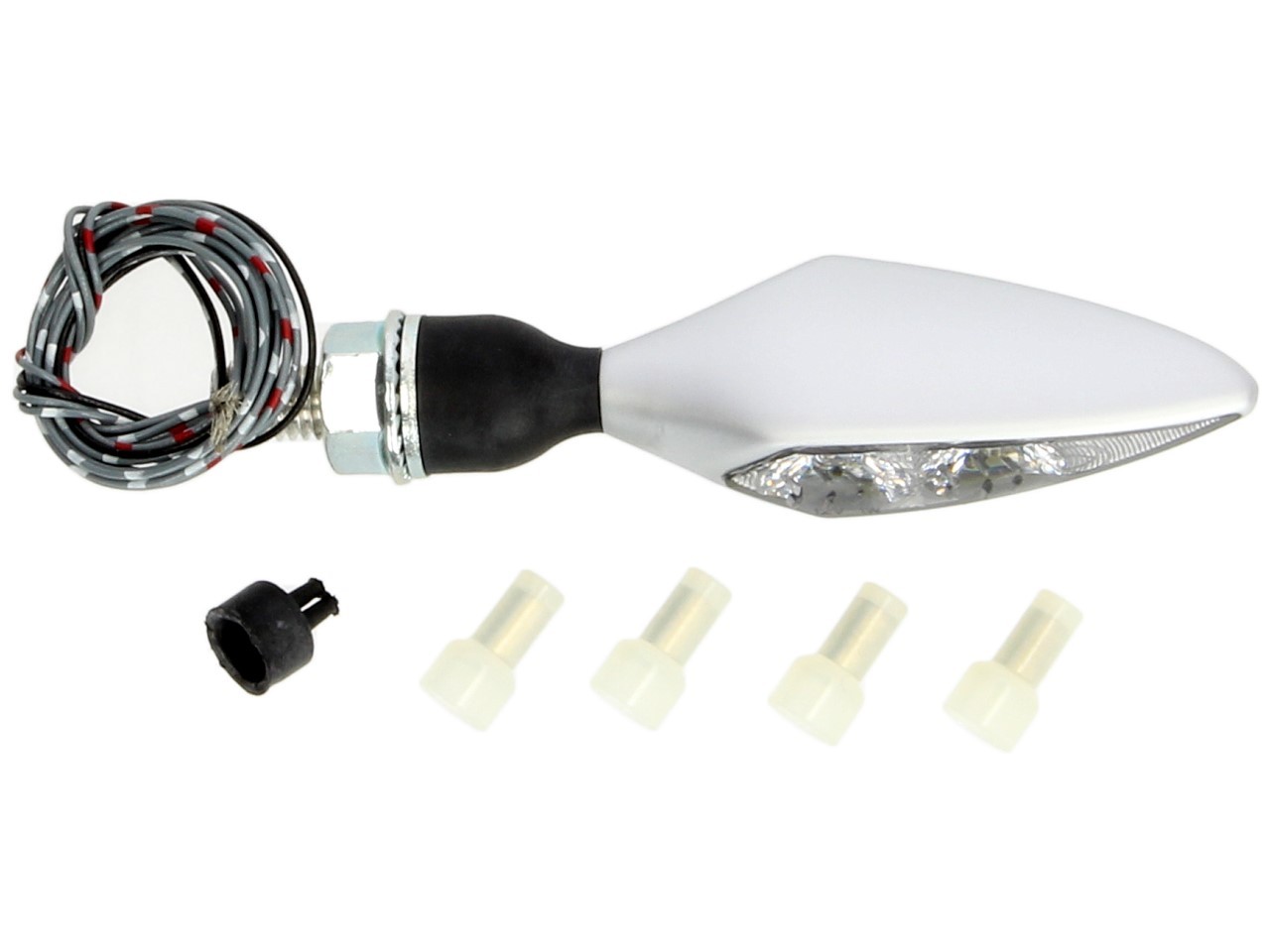

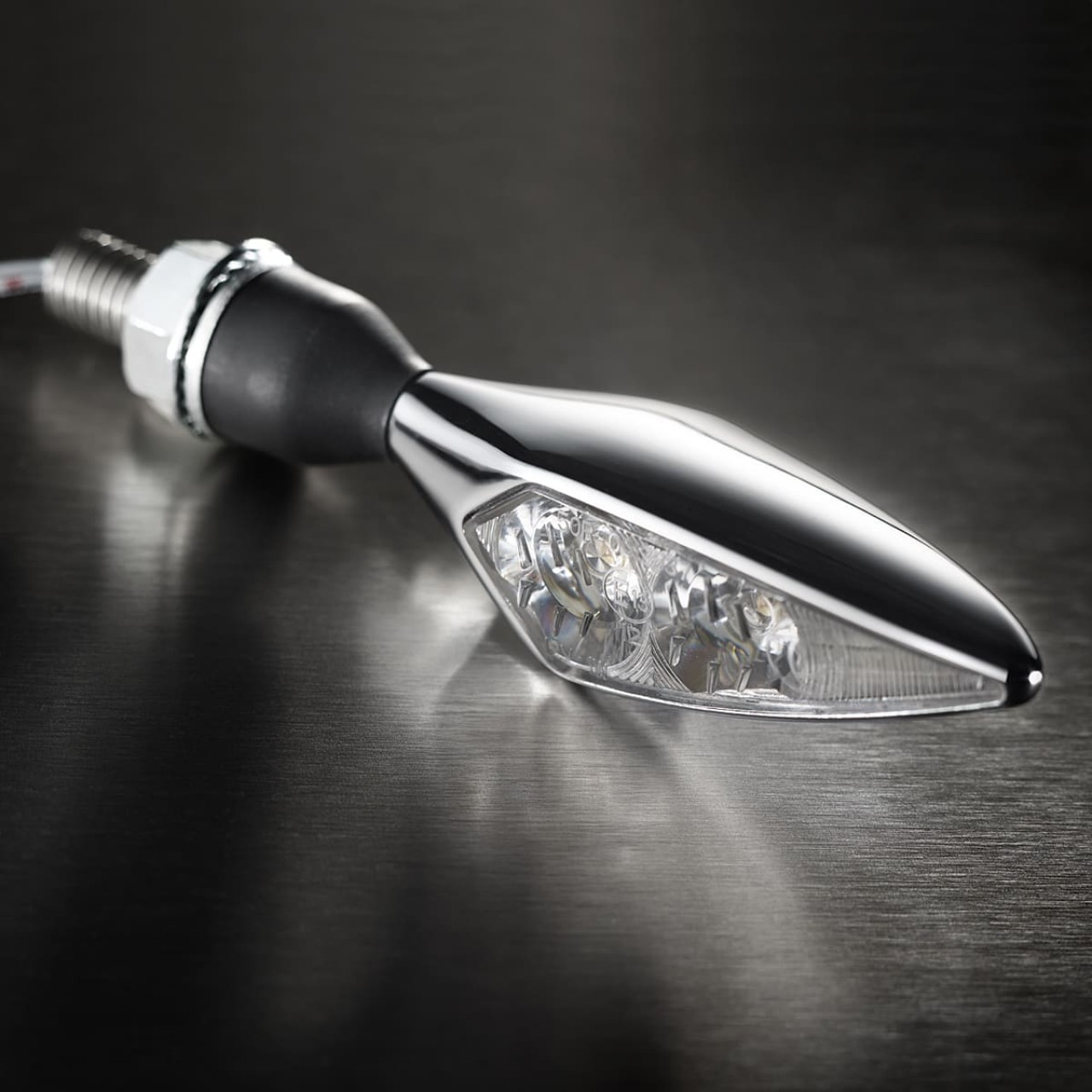

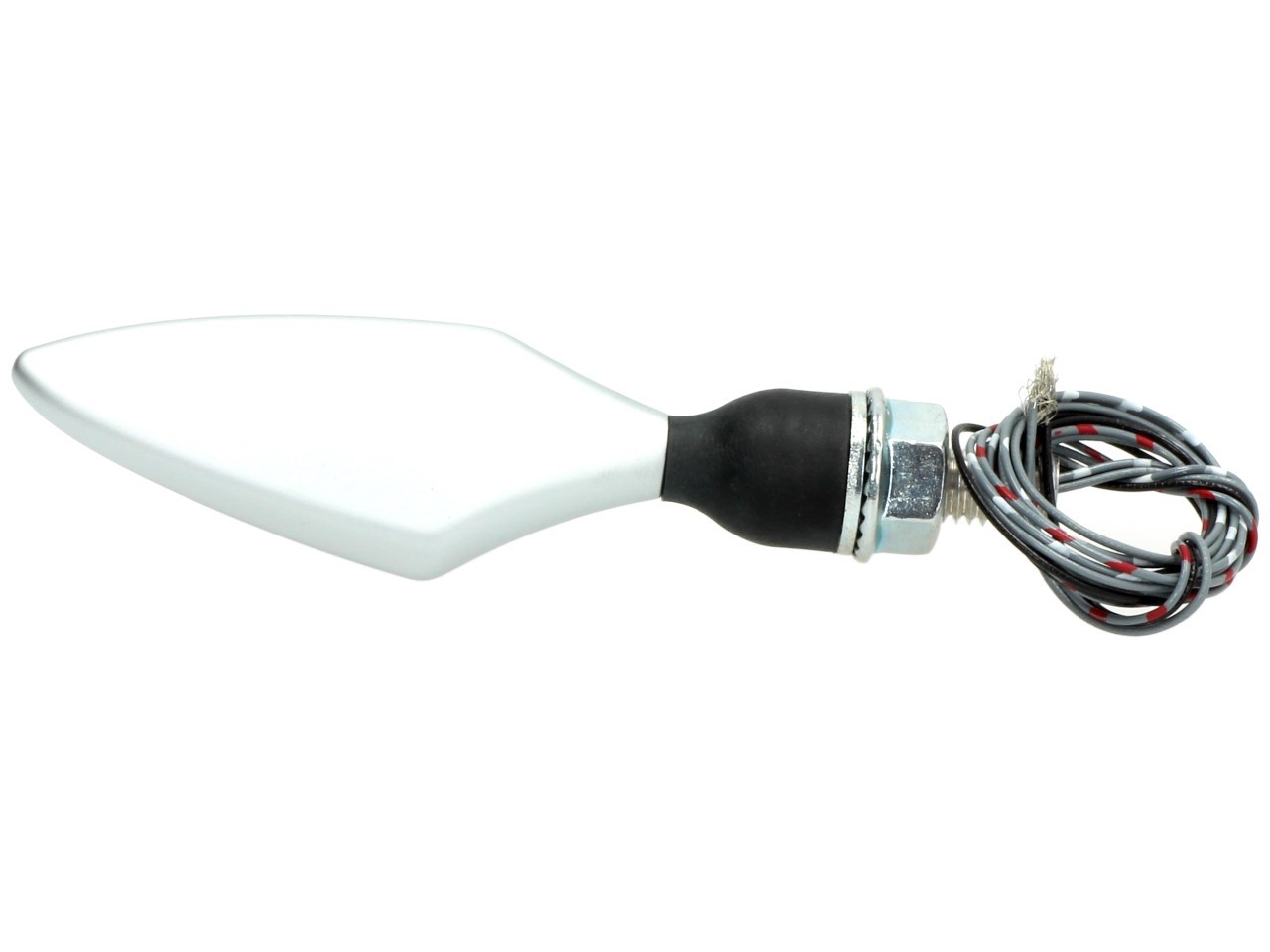

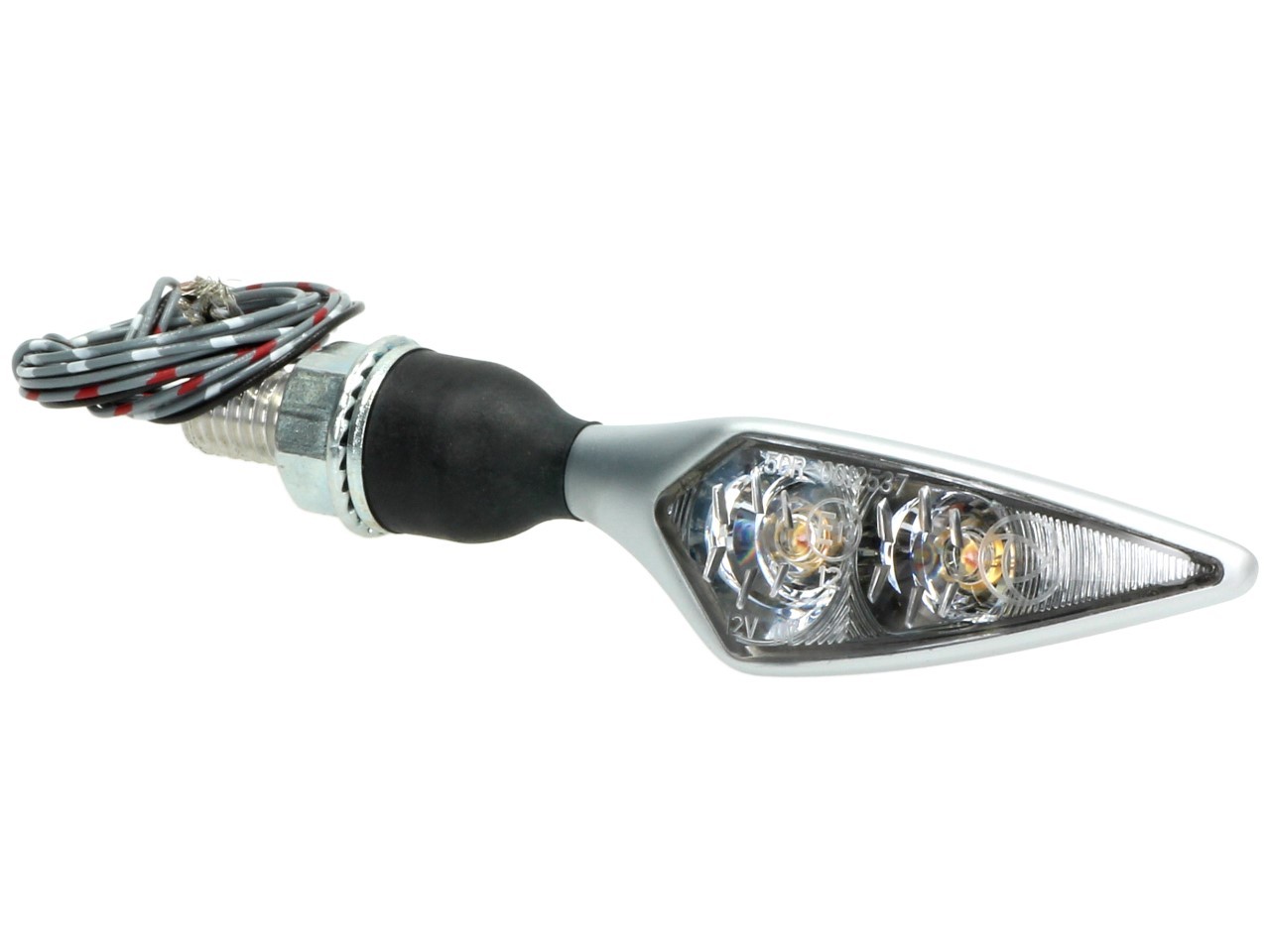

Kellermann turn signal, taillight and brake light, Rhombus DF, steel, LED, HR, 12 V, chrome matt, M8x20

Kellermann resistor i.LOAD - IL7.5. Power resistor 7.5 Ohm, 50 watts Dimensions 15x15x50 mm. Please note the installation instructionsIf original turn signals are converted to LED or halogen turn signals, the flashing frequency changes. The use of parallel connected power resistors counteracts this. Suitable power resistors for Kellermann turn signals are listed in the listing.With micro 1000 / Rhombus DF / DF Dark and a lighting indicator, 1 resistor á 33 Ohm for the tail light and 1 resistor á 7.5 Ohm for the brake light are additionally required. Required power resistor when converting to Kellermann turn signals (per turn signal) at 21 watts power consumption of the original turn signals: micro 1000 Halogen - 10 Ohm Art. 133.123950 micro 1000 / micro Rhombus (yellow, white, Dark, DF, PL, Extreme) - 7.5 Ohm Art. 133.123952 BL 1000 Halogen (yellow, white, SG) - no power resistor BL 1000 LED (LED, Dark, PL) - 7.5 Ohm Art. 133.123952 Required power resistor when converting to Kellermann turn signals (per side) at 10 Watt power consumption of the original turn signals: micro 1000 Halogen - 10 Ohm Art. 133.123950 micro 1000 / micro Rhombus (yellow, white, Dark, DF, PL, Extreme) - 10 Ohm Art. 133.123950 BL 1000 Halogen (yellow, white, SG) - no power resistor BL 1000 LED (LED, Dark, PL) - 10 Ohm Art. 133.123950 Component Lighting: Power resistorType designation: i.LOAD-IL7,5Product series: universal Price per piece The Kellermann ABC:What do the abbreviations in the product name mean? BL > turn signal DF > triple function (turn signal, brake and rear light) hm > horizontal mounting PL > position light (in addition to the turn signal in front) RB > rear and brake light SG > single glass (handlebar end turn signal with only one glass) vm > vertical mounting WL > white Light

Kellermann Rhombus DF Top quality Made in Germany Clear turn signal lens ECE approved for rear More visibility for more safety New, individual rear look Replaces existing brake/tail light and turn signals M8 x 20 thread Flexible mounting Equipped with patented Kellermann HighPower LED technology Long Life Protection Guard®, IC controlled, 330 kHz clocked High quality metal housing Suitable for 12 Volt vehicle electrical systems With replaceable silent rubber adapter, protects against damage a load-independent relay (133.123970) or power resistors may be required to adjust the flashing frequency. Main material: steelColor: chromeComponent lighting: turn signal, taillight and brake lightOptical property: glossyShape: triangularPosition: rear leftExpert opinion: E-approvedTurn signal model: Rhombus DFBulb type: LEDVolt: 12 VThread:  M8x20Price per piece The Kellermann ABC:What do the abbreviations in the product name mean? BL > turn signal DF > triple function (turn signal, brake and rear light) hm > horizontal mounting PL > position light (in addition to the turn signal in front) RB > rear and brake light SG > single glass (handlebar end turn signal with only one glass) vm > vertical mounting WL > white light

Kellermann extension 10mm With double M6 mounting thread For mounting between micro turn signal and silent rubber adapter Color: chromeComponent Lighting: ExtensionOptical property: satinLength: 10 mmProduct series: Micro 1000, Rhombus Price per piece The Kellermann ABC:What do the abbreviations in the product name mean? BL > turn signal DF > triple function (turn signal, brake and rear light) hm > horizontal mounting PL > position light (in addition to the turn signal in front) RB > rear and brake light SG > single glass (handlebar end turn signal with only one glass) vm > vertical mounting WL > white light
