Barracuda Can-Bus Relais
Barracuda Can-Bus Relais Barracuda Can-Bus Relais, zur Regelung der Blinkersteuerung von Barracuda Blinkern an Motorrädern mit Can-Bus-System-gesteuerten Blinkern Produktkennzeichnung: Barracuda Beleuchtung Produkt Typ: Barracuda Can-Bus Relais
Barracuda LED BLINKRELAIS
Barracuda LED BLINKRELAIS Barracuda LED BLINKRELAIS, zur Regelung der Blinkersteuerung von Barracuda Blinkern an verschiedenen Motorrädern. Produktkennzeichnung: Barracuda Beleuchtung Produkt Typ: Barracuda LED BLINKRELAIS
Barracuda Relais 3 PIN Unterbrecherregler
Barracuda Relais 3 PIN Unterbrecherregler Barracuda Relais Honda 3 PIN Unterbrecherregler, zur Regelung der Blinkersteuerung von Barracuda Blinkern an Honda Motorrädern ab 2018 Produktkennzeichnung: Barracuda Beleuchtung Produkt Typ: Barracuda Relais 3 PIN Unterbrecherregler
Flasher relay 12 V, universal, 2 connections
Sceed 42 flasher relay, 12V, 2 connections (Art. No.: 85.425012) Suitable for the following model: Sales designation Displacement Type Year of manufacture Vespa GTS 125 Euro 3 4T LC 125 ZAPM31300 2007 Vespa GTS 125 Euro 3 4T LC 125 ZAPM31300 2008 Vespa GTS 125 Euro 3 4T LC 125 ZAPM31300 2009 Vespa GTS 125 Euro 3 4T LC 125 ZAPM31300 2010 Vespa GTS 125 Euro 3 4T LC 125 ZAPM31300 2011 Vespa GTS 125 Euro 3 4T LC 125 ZAPM31300 2012 Vespa GTS 250 4T LC 250 ZAPM 45100 2004 Vespa GTS 250 4T LC 250 ZAPM 45100 2005 Vespa GTS 250 4T LC 250 ZAPM 45100 2006 Vespa GTS 250 4T LC 250 ZAPM 45100 2007 Vespa GTS 250 4T LC 250 ZAPM 45100 2008 Vespa GTS 250 4T LC 250 ZAPM 45100 2009 Vespa GTS 250 4T LC 250 ZAPM 45100 2010 Vespa GTS 250 4T LC 250 ZAPM 45100 2011 Vespa GTS 250 4T LC 250 ZAPM 45100 2012 Vespa GTS 250 4T LC 250 ZAPM 45100 2013 Vespa GTS 250 4T LC 250 ZAPM 45100 2014 Vespa GTS 250 ABS 4T LC 250 ZAPM45101 2007 Vespa GTS 250 ABS 4T LC 250 ZAPM45101 2008 Vespa GTS 250 ABS 4T LC 250 ZAPM45101 2009 Vespa GTS I.e. Super 125 Euro 125 ZAPM45300 2011 Vespa GTS I.e. Super 125 Euro 125 ZAPM45300 2012 Vespa GTS I.e. Super 125 Euro 125 ZAPM45300 2013 Vespa GTS I.e. Super 125 Euro 125 ZAPM45300 2014 Vespa GTS I.e. Super 125 Euro 125 ZAPM45300 2015 Vespa GTS i.e. Super 125 Sport 125 ZAPM45300 2011 Vespa GTS i.e. Super 125 Euro 125 ZAPM 45301 2014 Vespa GTS i.e. Super 125 Euro 125 ZAPM 45301 2015 Vespa GTS i.e. Super 300 Sport 300 ZAPM 45200 2010 Vespa GTS i.e. Super 300 Sport 300 ZAPM 45200 2011 Vespa GTS i.e. Super 300 Sport 300 ZAPM 45200 2012 Vespa GTS i.e. Super 300 Sport 300 ZAPM 45200 2013 Vespa GTV 125 Euro 3 4T LC 125 ZAPM 31301 2006 Vespa GTV 125 Navy Euro 3 4T L 125 ZAPM 31301 2007 Vespa GTV 125 Navy Euro 3 4T L 125 ZAPM 31301 2008 Vespa GTV 250 Euro 3 4T LC 250 ZAPM 45102 2006 Vespa GTV 250 Euro 3 4T LC 250 ZAPM 45102 2007 Vespa GTV 250 Euro 3 4T LC 250 ZAPM 45102 2008 Vespa GTV 250 Euro 3 4T LC 250 ZAPM 45102 2009 Vespa GTV 250 Navy Euro 3 4T L 250 ZAPM 45102 2007 Vespa GTV 300 4T LC 300 ZAPM 45201 2011 Vespa GTV 300 Via Montenapoleo 300 ZAPM 45201 2010 Vespa GTV 300 Vie della Moda 1 300 ZAPM 45201 2013

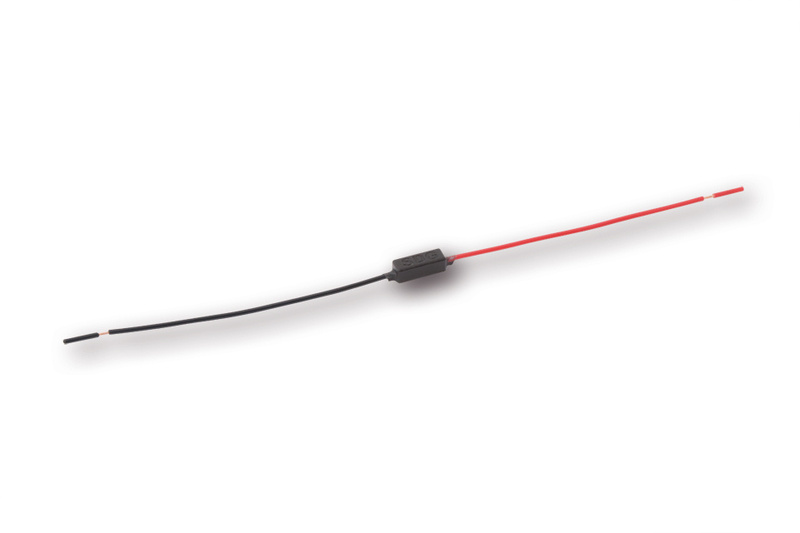

HIGHSIDER pro PW-Nano Relay For indicators
HIGHSIDER PW-NANO Extremely small, load-independent digital flasher unit that is ideal for LED blinker conversions or for conventional 10-watt or 21-watt blinker bulbs. The relay provides an absolutely constant flashing frequency and fits into almost all steering tubes or frames. Precisely matched - the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality and functionality, you can easily customize your bike according to your wishes. Dimensions: Length: 15 mm Width: 8 mm Height: 7 mm Technical specifications: Supply voltage: 8 V - 18 V Load range: 0.1 W - 42 W per side Simple connection via 2 wires: Red cable = 12 V (+) connect to terminal 49, it is recommended to connect a 10 A fuse upstream Black cable = connect earth (-) in series to the blinker switch with terminal 49a Scope of delivery: 1 piece Notes: On various English bikes (BSA, Norton etc.), all consumers are connected via earth, plus is connected to the frame. Therefore, when fitting the PW Nano, the black cable must be connected to battery earth and the red cable to the switch. Not suitable for push-button switches. Not suitable as a flasher relay set that has a hazard warning function or other additional functions.

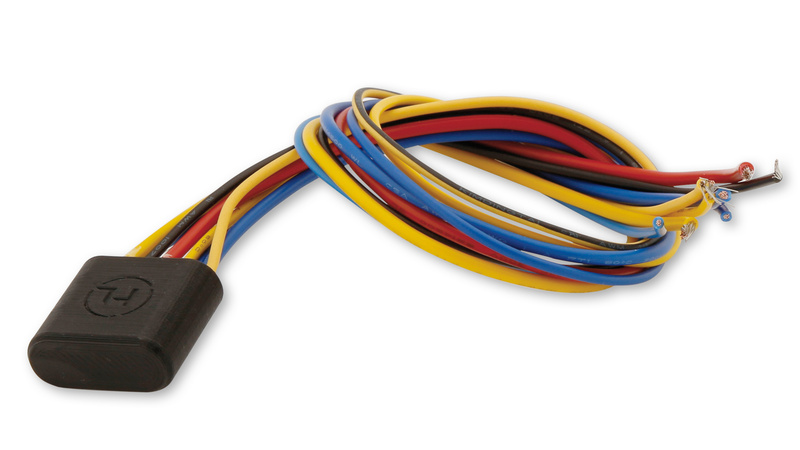

HIGHSIDER pro relay electronics, two-channel, 6-14V
HIGHSIDER Electronic two-channel relay 6-14V(Even more functions than the predecessor HIGHSIDER Plus - Minus Converter CB3)It is possible to control the desired function via both plus and minus. An electronic, dual relay with inputs for all standard pushbuttons or switches.If one of the two inputs is connected to earth or plus via a switch, the corresponding 12 V output is switched on. The outputs can supply lines up to 40 W in continuous operation. Typical power consumers that are operated via non-latching buttons (e.g. horn, low beam, high beam, etc.) can be controlled with the HIGHSIDER two-channel relay. The use of the relay instead of a direct connection of the load to the switch enables the use of the smallest cable cross-sections and push-buttons with low current values. Example 1: You want to use a small push-button with a low flow current to switch a horn (high current consumption), for example. To prevent the button from being damaged by the normal power consumption, simply use this electronic relay.It allows you to use switches or buttons to switch high currents.Example 2:On some motorcycles (e.g. INDIAN), the blinker signal is switched to ground. This means: With the help of the electronic two-channel relay, you can now convert the grounded blinker signal to positive. This means that all indicators, indicator/tail light combinations or indicators/position lights can still be used.(To convert to an indicator/tail light combination (e.g. 254-540) you need 1 x the electronic relay for your vehicle)Product advantages:- Extremely thin cable cross-sections for connecting the buttons- Use of switches for low currents despite consumers with high currents- Extends the service life of switches- 2 independent channels- Very small dimensions and low weight Very small dimensions and low weight- Fully sealed product (waterproof)- Smaller and more flexible than expensive multi-channel switch boxes- Protection against all possible wiring errors- More flexible than - ALL IN ONE SMART BOXES -Dimensions:Width: 17 mmDepth: 9.5 mmHeight: 17 mmWeight: 9 gConnections:Red (thick) = ignition plus 12V (+)Yellow (thick) = work output CH2 (+)Blue (thick) = work output CH1 (+)Yellow (thin) = activation plus signal CH2Blue (thin) = activation plus signal CH1Yellow/black (thin) = activation minus signal CH2Blue/black (thin) = activation minus signal CH1Maximum power: 40 wattsScope of delivery: 1 piece
HIGHSIDER Smart capacitor With cable, 100 µF (1pc)
The HIGHSIDER capacitor can be used for a wide range of lighting applications. It can help to prevent the flickering of LED rear lights, brake lights, headlights etc. when the vehicle is stationary. A black and a red cable are connected to the capacitor. The contact points are protected by a shrink sleeve. The cable length of approx. 10 cm allows the capacitor to be positioned individually.
HIGHSIDER Smart capacitor With cable, 1000 µF (1pc)
The HIGHSIDER capacitor can be used for a wide range of lighting applications. It can help to prevent the flickering of LED rear lights, brake lights, headlights etc. when the vehicle is stationary. A black and a red cable are connected to the capacitor. The contact points are protected by a shrink sleeve. The cable length of approx. 10 cm allows the capacitor to be positioned individually.

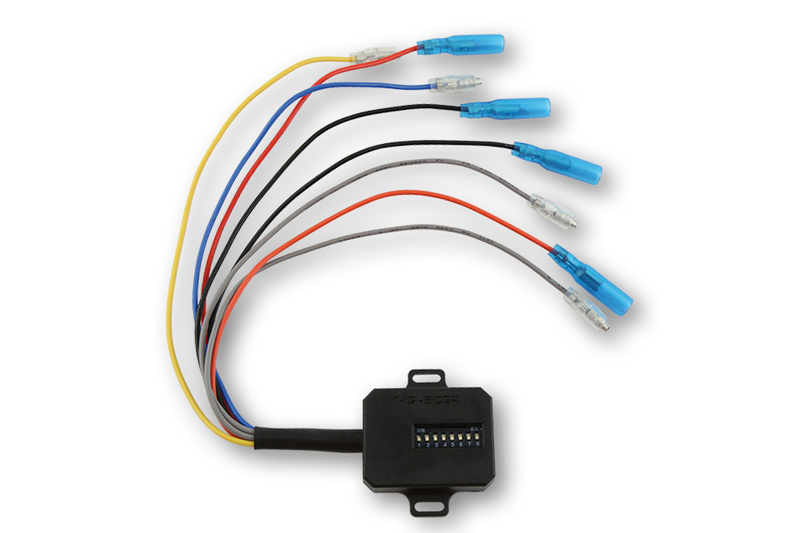

HIGHSIDER smart CBW1 Resistor For Vehicles With Can-Bus (1pc)
HIGHSIDER CAN-BUS resistor CBW1 with DIP switch. Our newly developed HIGHSIDER CAN-BUS resistor CBW1 is suitable for most vehicles with a CAN-BUS system. The CBW1 resistor provides a required electrical load for your vehicle which, if the DIP switches are set correctly, means that there is no error message in the cockpit for accessory indicators. It is also fail-safe. This means:If the accessory indicators fail due to an electronic defect, an error message is immediately displayed in the cockpit. Up to 2 channels can be operated, such as rear left and rear right indicators.If 2 pairs of indicators (VL, VR, HL, HR) are replaced, 2 x CBW1 are required. What requirements must be met in order to use the CBW1 on the vehicle:Either:LED indicators have been installed on the vehicle in their original condition.Or:The vehicle has a CAN-BUS system. If none of the requirements are met, the CBW1 can therefore not be installed (!), then we recommend the following resistors for the vehicle:For indicators with 21 watts6.8 Ohm item number 207-025or10 Ohm item number 207-028 For indicators with 10 watts27 Ohm item number 207-020 The following resistance values can be set:150 Ohm170 Ohm200 Ohm240 Ohm300 Ohm400 Ohm600 Ohm1200 Ohm Dimensions:Height = 11 mmWidth = 31 mm (without lugs)Width = 46 mm (with lugs)Length = 40 mmCable length = 200 mm with pins Connections:Yellow = input channel 1 (+)Orange = output channel 1 (+)Blue = input channel 2 (+)Red = output channel 2 (+)Grey = input ground (-)Black = output ground (-) Scope of delivery: 1 piece Notes:Up to 2 channels can be operated.The connection is explained in detail in the operating instructions!

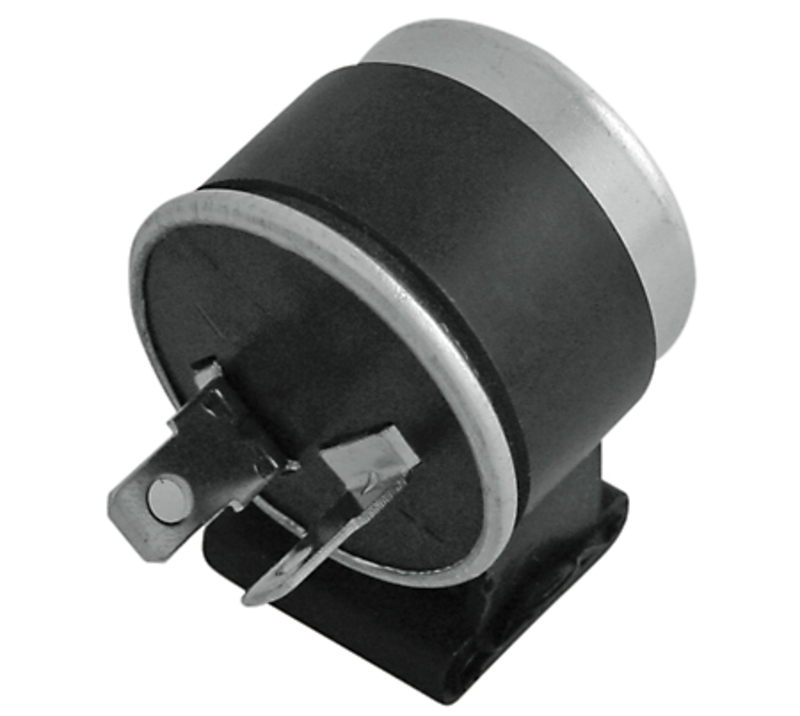

HIGHSIDER smart flasher relay 2-pole, 12V 21W
HIGHSIDER smart flasher relay, 2-pole, 12 Volt 21 Watt x2 + 3.4 Watt, aluminum universal relay

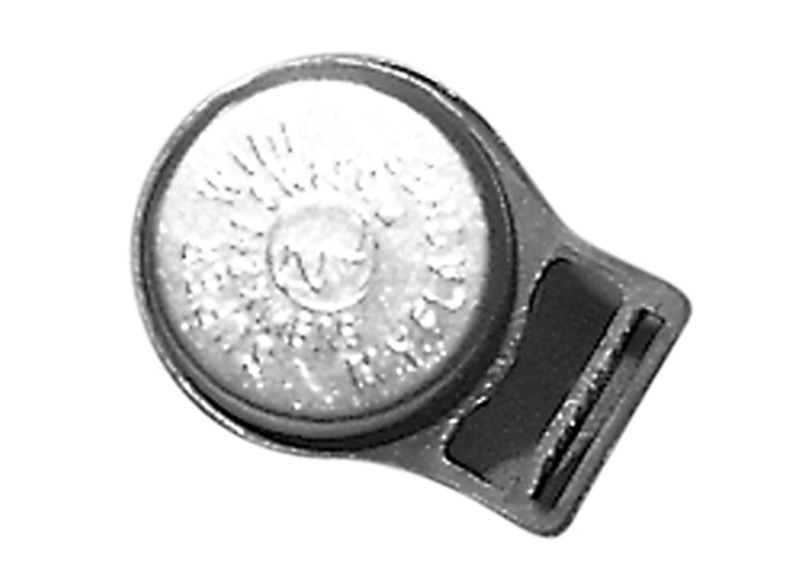

HIGHSIDER smart flasher relay 2-pole, 6V 17W, aluminum
HIGHSIDER smart flasher relay, 2-pole, 6 Volt 17 Watt x2 + 1.5 Watt, aluminum universal relay.L= Flasher (switch)X= 12V +

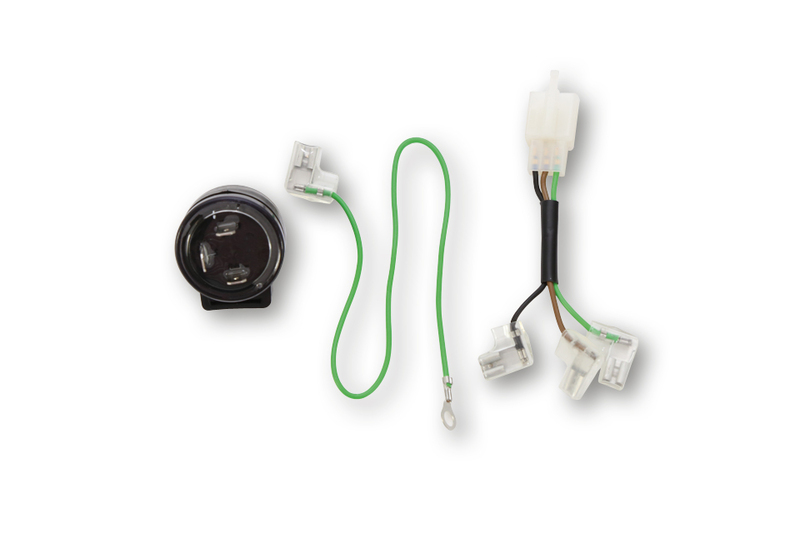

HIGHSIDER smart flasher relay 3-pin, universal, 12V
HIGHSIDER smart 3-pin universal flasher relayUniversal flasher relay with adjustable flashing frequency. This relay can be used to operate a combination of LED and bulb indicators. A hazard warning function is also provided. DimensionsØ 37 mmHeight: 35 mmTechnical data and connectionsVoltage: 12 VLoad consumption: min. 5 mA ~ max. 15 ALoad: min. 0.06 W ~ 180 W max.49 B = Battery (12V +) input31 G = Ground (-)49a L = Light (to blinker switch) Attach the separate green cable to G (31) and to the vehicle's ground point. For vehicles with 3-way connector and 2-pin assignment (49, 49a)For vehicles with 3-way connector and 3-pin assignment (49, 49a, 31), use the green cable on the adapter plug (please check that the assignment is correct).Scope of delivery: 1 pieceNote: No function at 6V!Excerpt from StVO: The flashing frequency must be set to 1.5 Hz +/- 0.5 Hz (90 pulses +/-30 pulses per minute).

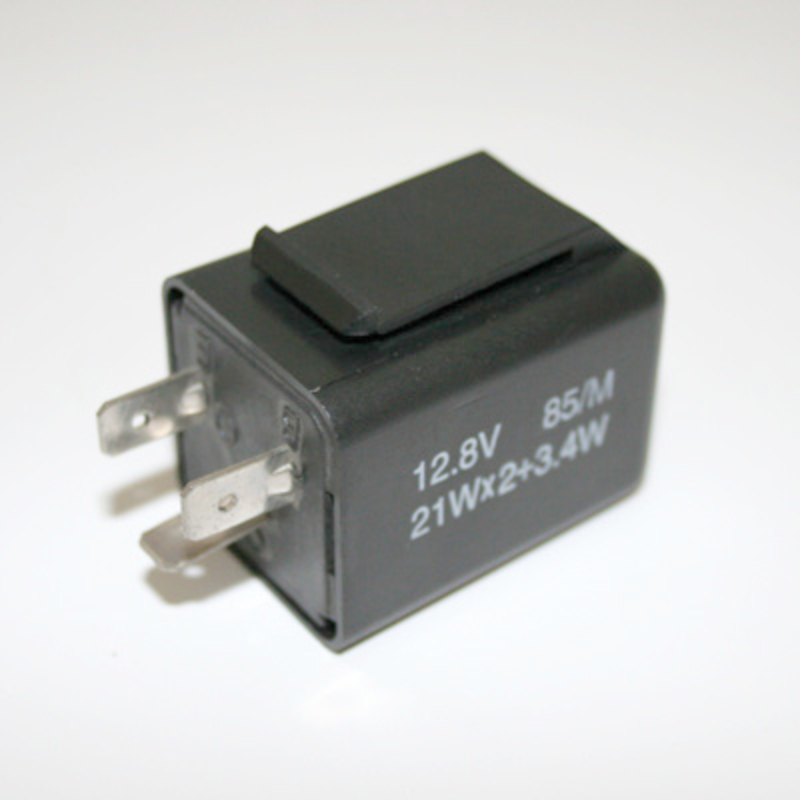

HIGHSIDER smart flasher relay 3-pole electronic 12 V
HIGHSIDER smart flasher relay, 3-pole, 12 Volt 10-21 Watt x2 + 3.4 Watt, aluminum Universal relay (electronic)Connections:B = Battery (12V +) inputE = Earth (ground) (-)L = Light (switch) output

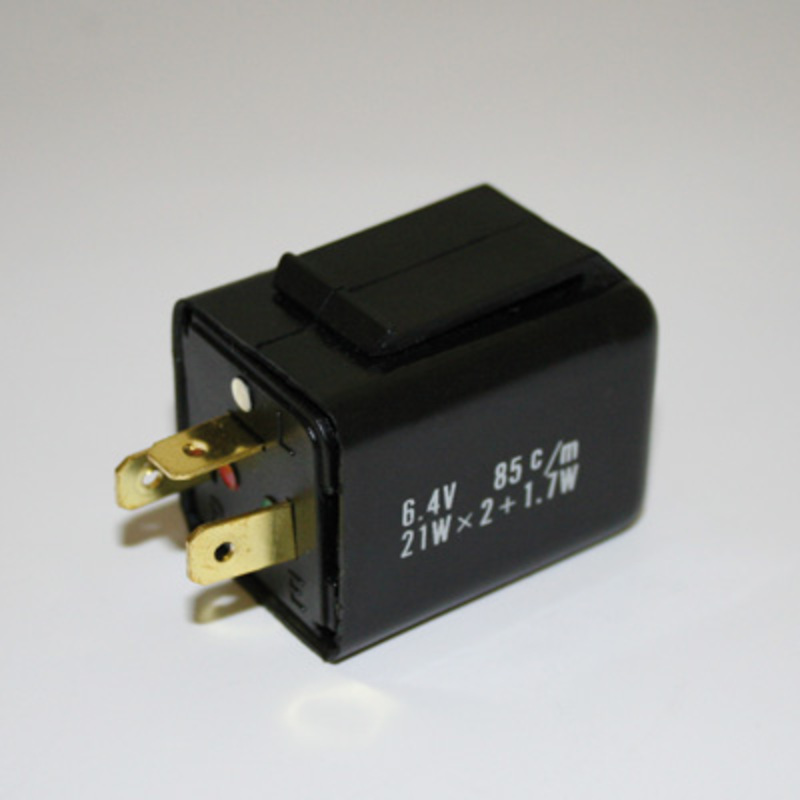

HIGHSIDER smart flasher relay 3-pole electronic 6 V
HIGHSIDER smart flasher relay electric, 3-pole flat plug connectionElectronic flasher relay for standard indicators. Black plastic housing with a clip.Nominal voltage:6 voltsSwitching power:2 x 21 watts + 3.4 wattsDimensions:Height = 43 mmWidth = 31 mmConnections:L = blinker (switch)B = 6V + (battery)E = earthScope of delivery: 1 pieceNote:Not suitable for LED indicators.

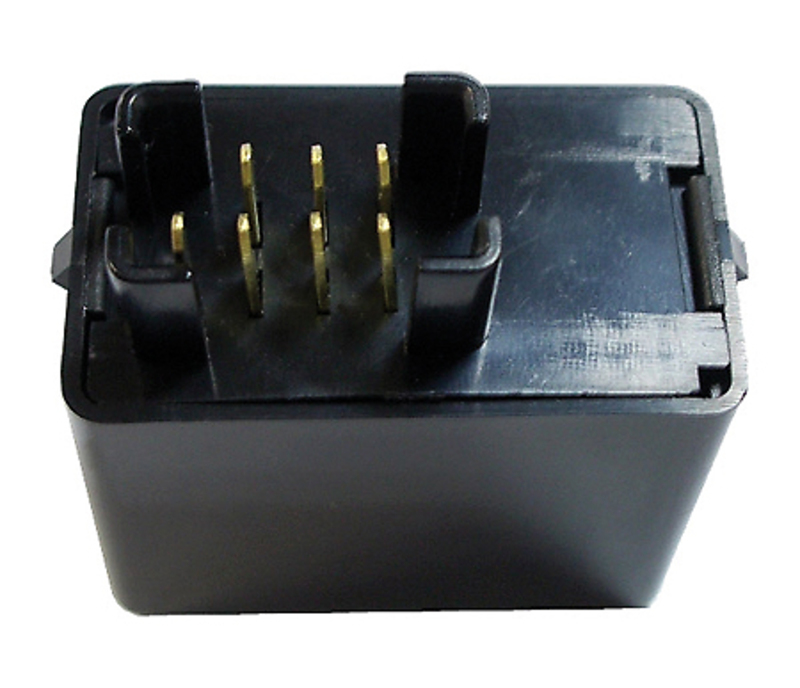

HIGHSIDER smart flasher relay 7-pin, For Suzuki, electronic 12V, 0.05A-10A
HIGHSIDER smart flasher relay 7-pole for various SUZUKI models, electronic 12V.Can also be used as a fuel pump relay.

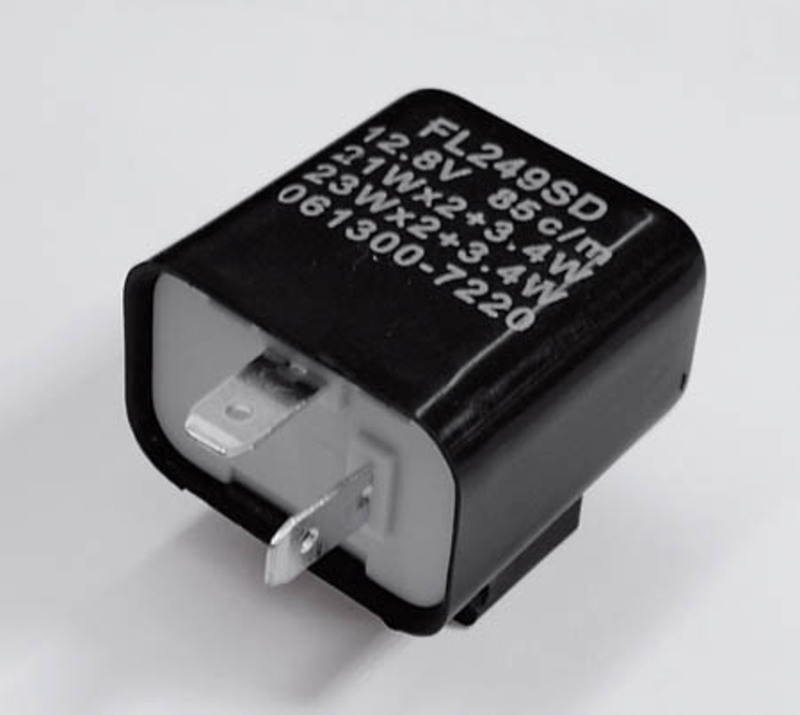

HIGHSIDER smart flasher relay black 2 pole 12V 21W
HIGHSIDER smart flasher relay, 2-pole, 12 Volt 21 Watt x2 + 3.4 Watt, black plastic relay

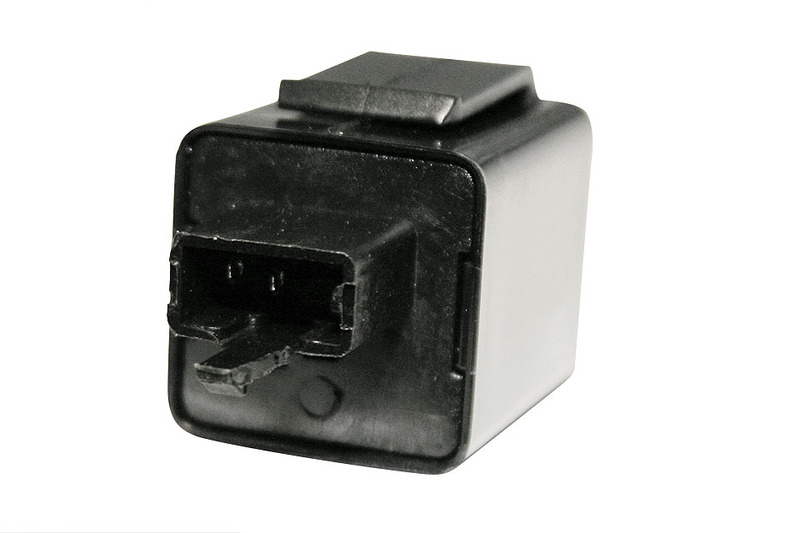

HIGHSIDER smart flasher relay electronic 12 V, narrow 3-way plug with 2 pins
HIGHSIDER smart flasher relay, 2-pole, 12 volt, electronic, also for motorcycles with 3-pole plug.Can also be used in some cases with LED indicators, provided that a 5 watt indicator light on the cockpit also lights up when flashing. B = Battery 12 volt (+) (49)L = Lead to blinker switch. (49a)The earth connection is omitted.

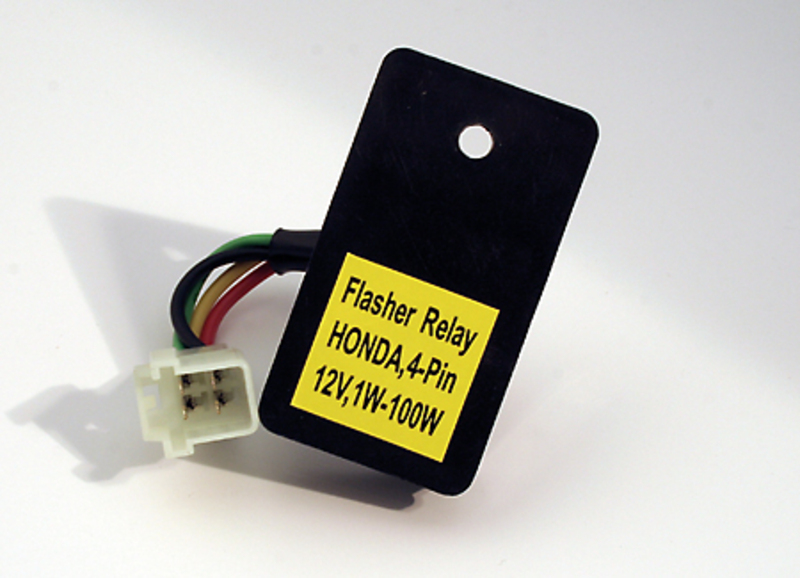

HIGHSIDER Smart flasher relay For Honda
HIGHSIDER smart flasher relay for LED and bulb indicators for various Honda models such as CBR 600 / 1000 RR, year of construction 2006 to 2008, and CB 1000 R, 12 V, 0.05 A to 10 A (1-100W), 4-way plug.
HIGHSIDER smart flasher relay For LED indicators, For Honda, Kawasaki and Yamaha, 12 V, 0.05 A to 10 A (
HIGHSIDER smart flasher relay for LED and bulb indicators for various Honda, Kawasaki and Yamaha models, 12 V, 0.05 A to 10 A (1-100W), narrow 3-way plug with 2-pin connection, also for motorcycles with 3-pin connection.

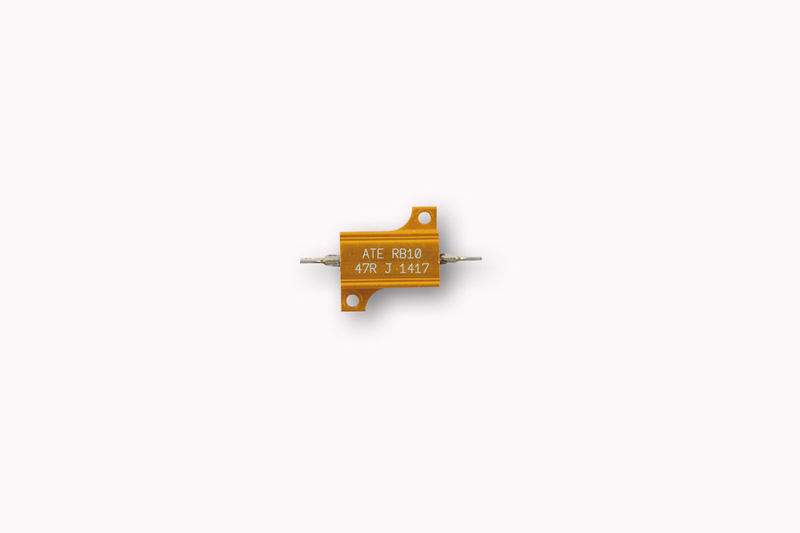

HIGHSIDER smart high load resistor 47 Ohm /12 W (1pc)
HIGHSIDER smart high-load resistor 47 Ohm / 12 WThis load resistor is required for the BMW RnineT from 2017 for our TYPE 3 headlights.
HIGHSIDER smart indicator light for high beam
HIGHSIDER smart indicator light high beamSupplied with a plastic washer and a metal nut. Head diameter only 12 mm (heel height: approx. 1.2 mm). With imprinted symbols. Thread diameter 10 mm, total length approx. 35 mm, cable length approx. 250 mm
HIGHSIDER smart indicator light for indicators green
HIGHSIDER smart indicator light IndicatorSupplied with a plastic washer and a metal nut. Head diameter only 12 mm (heel height: approx. 1.2 mm). With imprinted symbols. Thread diameter 10 mm, total length approx. 35 mm, cable length approx. 250 mm
HIGHSIDER smart indicator light For oil
HIGHSIDER smart oil indicator lightRed indicator light with printed symbol.Dimensions:Head diameter: 12 mm (heel height: approx. 1.2 mm). Total length: approx. 35 mmCable length: approx. 250 mmThread diameter 10 mmScope of delivery:1 piece incl. a plastic washer and a metal nut
HIGHSIDER smart indicator light For oil, For ATV
HIGHSIDER smart indicator light oil for ATV, red, diameter 18 mm, 12V/2W, for screw mounting.
