Speedometer / Tachometer
Available categories
Matching articles

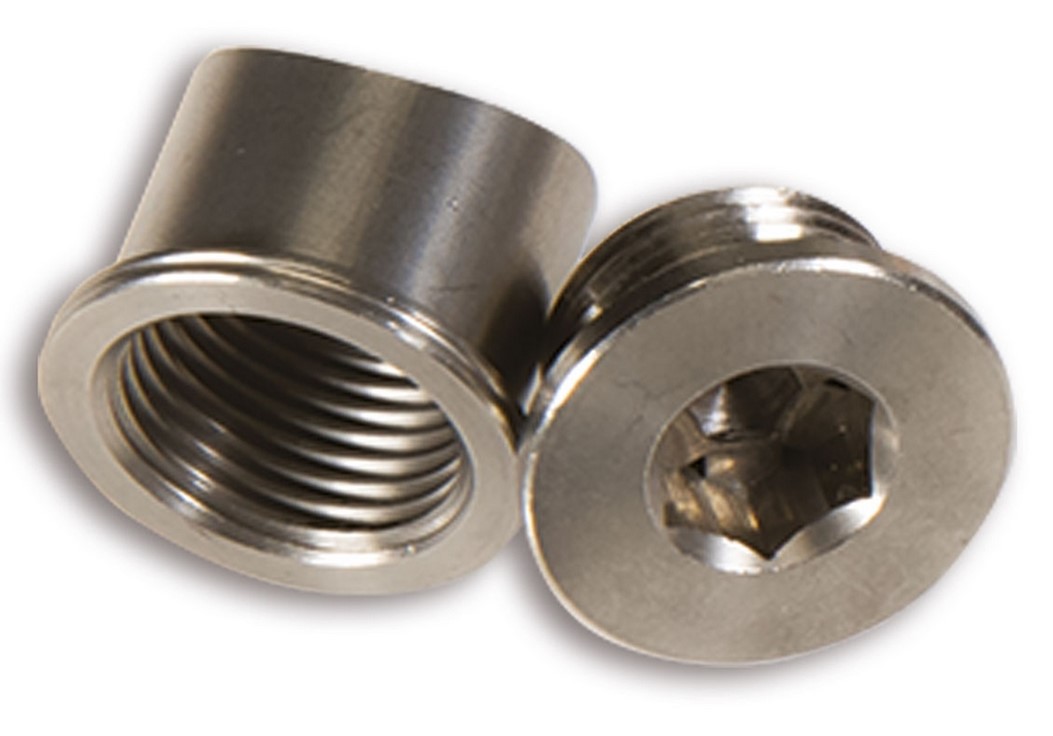

Adapter lambda probe for Vespa GTS/GTV 300cc ('19-)
for M5817539B for tuned engines Ø M18,5x1,25 mm
Cable lambda indicator for Vespa GTS/GTV 300cc ('19-)
for M5817539B for tuned engines
Cable set water temperature connection speedometer for Vespa GTS/GTS Super 125-300cc ('14-)
for Vespa GTS/GTS Super 125-300cc ('14-) Since the model series from 2014, where PIAGGIO has installed new speedometers, the Vespa GTS no longer has the water temperature indicator in the display as standard, only the warning light signals the overheating of the engine. The cable set offers in combination with the SIP digital speedometer / tachometer the option on the GTS Facelift models from 2014 to display the water temperature display (bar display on the left in the display). The connection to the speedometer is made at the connector "TEMP B", the cable must then be led through the frame to be connected to the temperature sensor of the engine. The green connector of the temperature sensor is equipped with two pinouts but only two are used. The two remaining slots are equipped with green placeholder pins, these must be pulled with needle nose pliers to insert the connectors of the SIP cable set there. The red cable must be connected to pin no. 2, the black cable to pin no. 4. ATTENTION: Work on the speedometer such as replacing the speedometer glass, repairs etc. may only be carried out by SIP Scootershop GmbH or specialist workshops. Unauthorized modifications (e.g. opening the speedometer) will void the warranty.
Cable temperature gauge for Vespa GTS/GTV 300cc ('19-)
for M5817491B/ M5817540B for tuned engines
Decorative ring speedometer for Vespa GTS Supertech HPE 125/300 ('19-), black glossy
Drivers of Supertech models are reluctant to even look at the speedometer while riding their favorite - the reason for this is the original chrome frame that surrounds the cockpit instrument. For a more discreet and sporty look SIP offers the decorative frame of the speedometer made of synthetic material, in glossy black or matte black. This is just like the original simply glued to the steering head fairing and held at the bottom by additional clips. Plastic black glossy angular When mounting the new speedometer frame, make sure that the handlebar fairing is free of dirt and adhesive residue.
Decorative ring speedometer for Vespa GTS Supertech HPE 125/300 ('19-), black glossy
Aluminum CNC black glossy angular When mounting the new speedometer frame, make sure that the handlebar fairing is free of dirt and adhesive residues.
Decorative ring speedometer for Vespa GTS Supertech HPE 125/300 ('19-), black matt
Drivers of Supertech models are reluctant to even look at the speedometer while riding their favorite - the reason for this is the original chrome frame that surrounds the cockpit instrument. For a more discreet and sporty look SIP offers the decorative frame of the speedometer made of synthetic material, in glossy black or matte black. This is just like the original simply glued to the steering head fairing and held at the bottom by additional clips. Plastic black matt angular When mounting the new speedometer frame, make sure that the handlebar fairing is free of dirt and adhesive residue.
Decorative ring speedometer for Vespa GTS Supertech HPE 125/300 ('19-), silver
Aluminum CNC silver angular When mounting the new speedometer frame, make sure that the handlebar fairing is free of dirt and adhesive residues.
Decorative ring speedometer for Vespa GTS/GTS Super 125-300cc ('14-), black glossy
for Vespa GTS/GTS Super 125-300cc FL ('14-) Riders of the GTS Facelift models (from 2014) are reluctant to even look at the speedometer while riding their sweetheart - the reason for this is the original chrome frame which surrounds the cockpit instrument. For a more discreet and sporty look, SIP offers the decorative frame of the speedometer made of synthetic material, in glossy black or matte black. This is just like the original simply glued to the steering head fairing and held at the bottom by additional clips. When mounting the new speedometer frame, make sure that the handlebar fairing is free of dirt and adhesive residue.
Decorative ring speedometer for Vespa GTS/GTS Super 125-300cc ('14-), black matt
for Vespa GTS/GTS Super 125-300cc FL ('14-) Riders of the GTS Facelift models (from 2014) are reluctant to even look at the speedometer while riding their sweetheart - the reason for this is the original chrome frame which surrounds the cockpit instrument. For a more discreet and sporty look, SIP offers the decorative frame of the speedometer made of synthetic material, in glossy black or matte black. This is just like the original simply glued to the steering head fairing and held at the bottom by additional clips. When mounting the new speedometer frame, make sure that the handlebar fairing is free of dirt and adhesive residue.

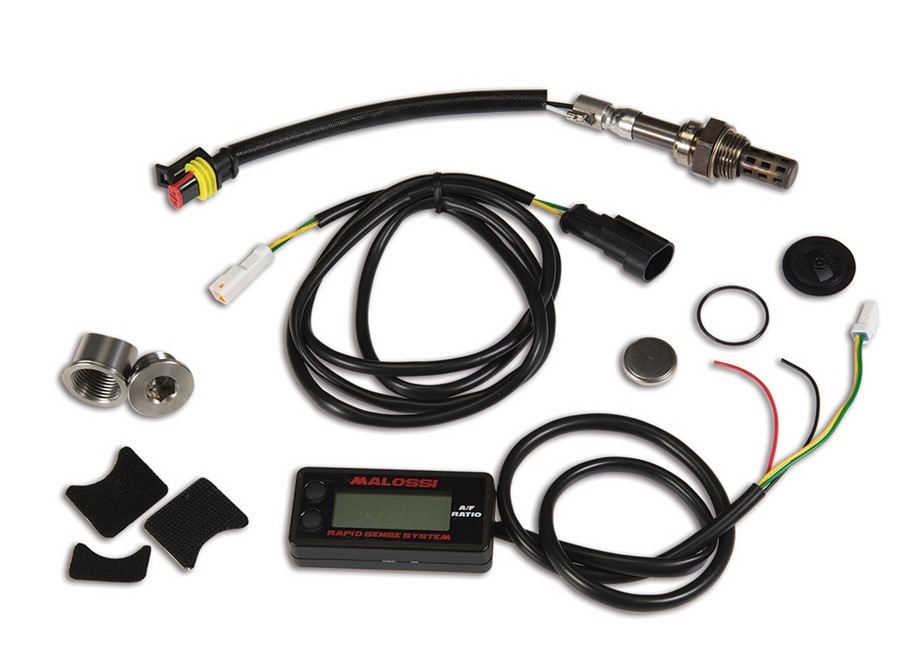

Lambda indicator 2 and 4 stroke engines for Vespa GTS/GTV 300cc ('19-)
12,2-17,2 λ Ø 69x32x16 mm Connection: M18x1,5mm for tuned engines

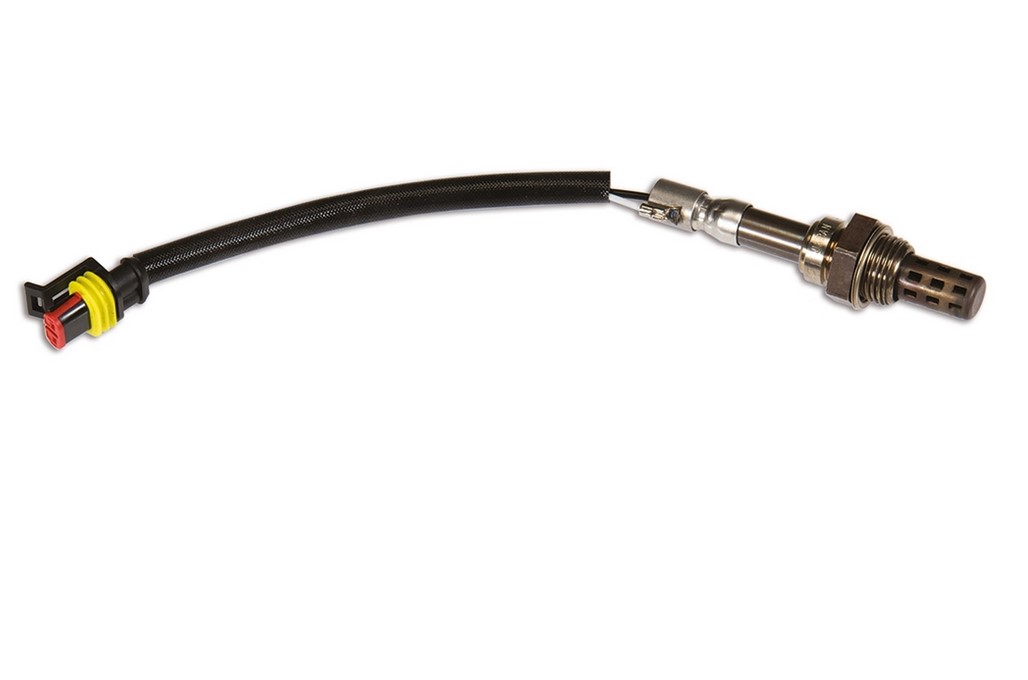

Lambda sensor for Vespa GTS/GTV 300cc ('19-)
for M5817539B for tuned engines Ø M18,5x1,25 mm
Tachometer 2 and 4 stroke engines for Vespa GTS/GTV 300cc ('19-)
0-15,000rpm/ -25°C - +250°C (-13°F - +482°F)/ 0-99999h (0.0-999.9 ) Ø 69x32x16 mm Connection: M10x1mm with temperature display/operating hours counter for tuned engines and as accessory - very nice
Tachometer/Speedometer for Vespa GTS/GTS Super 300cc FL ('14-), black
for Vespa GTS/GTS Super 300cc FL ('14-), also fits Vespa GTS/GTS Super 125 ('14-'16), Euro3 models only. The SIP speedometer / tachometer replaces the standard very sparsely equipped speedometer with a real multifunctional device. The speedometer impresses with its large analog display for speed (up to 160kmh) and rpm (up to 16,000 rpm). Accordingly, the speedometer needle displays either RPM or speed. The lower digital display can optionally show 18 functions. These can be switched over at the push of a button. In addition to the standard functions such as analog / digital speed display, trip & total kilometers, temperature, the speedometer has an analog & digital tachometer, digital fuel and temperature display, accelerometer for distance and speed measurement, average speed and many other features (see function list). The backlight can be selected from eight different colors. The brightness can also be regulated separately. Before each restart, the instrument performs a complete self-test. The speed pickup is done as original via the speed pickup integrated in the wiring harness or can be transmitted via a digital speed sensor. The appropriate sensors are available as accessories. A cable set for connection to the vehicle is included. This is connected between the speedometer and the wiring harness. Everything without soldering, simple and uncomplicated. Setting and switching between functions is done via the original "Mode" button on the vehicle. Dial: black Numerals: white Speedometer bezel: black Functions: Speed analog : 0 - 160 km/h (0 - 160 mph) Speed digital : 0 - 260 km/h Speed analog : 0 - 16.000 rpm Speed digital : 0 - 16.000 rpm Odometer total : 0000 - 99999 km (miles) Trip odometer A and B : up to 9999,9 km/ miles Driving time A and B up to 99,59 h Battery voltage display (incl. low voltage warning) Odometer reading adjustable (old speedometer reading can be transferred with it) Average speed A and B up to 199 km/h or 160 mph Brightness of speedometer illumination adjustable 5 times Background color selectable (8 colors) Fuel level indicator digital (When the fuel level is low, the bar indicator flashes and the reserve indicator lights up) Time (12h/24h) Temperature up to 250° or 32°-482° F. for cylinder head. An external temperature sensor is supplied for the spark plug Data storage of top speed , top rpm and temperature Distance and acceleration measurement: distance measurement measures the time of a freely selectable distance from 0 to 1000 meters / speed measurement measures the time of a freely selectable initial and final speed.
Tachometer/Speedometer for Vespa GTS/GTS Super 300cc FL ('14-), carbon-look
for Vespa GTS/GTS Super 300cc FL ('14-), also fits Vespa GTS/GTS Super 125 ('14-'16), Euro3 models only. The SIP speedometer / tachometer replaces the standard very sparsely equipped speedometer with a real multifunctional device. The speedometer impresses with its large analog display for speed (up to 160kmh) and rpm (up to 16,000 rpm). Accordingly, the speedometer needle displays either RPM or speed. The lower digital display can optionally show 18 functions. These can be switched over at the push of a button. In addition to the standard functions such as analog / digital speed display, trip & total kilometers, temperature, the speedometer has an analog & digital tachometer, digital fuel and temperature display, accelerometer for distance and speed measurement, average speed and many other features (see function list). The backlight can be selected from eight different colors. The brightness can also be regulated separately. Before each restart, the instrument performs a complete self-test. The speed pickup is done as original via the speed pickup integrated in the wiring harness or can be transmitted via a digital speed sensor. The appropriate sensors are available as accessories. A cable set for connection to the vehicle is included. This is connected between the speedometer and the wiring harness. Everything without soldering, simple and uncomplicated. Setting and switching between functions is done via the original "Mode" button on the vehicle. Dial: black Numerals: white Speedometer bezel: carbon-look Functions: Speed analog : 0 - 160 km/h (0 - 160 mph) Speed digital : 0 - 260 km/h Speed analog : 0 - 16.000 rpm Speed digital : 0 - 16.000 rpm Odometer total : 0000 - 99999 km (miles) Trip odometer A and B : up to 9999,9 km/ miles Driving time A and B up to 99,59 h Battery voltage display (incl. low voltage warning) Odometer reading adjustable (old speedometer reading can be transferred with it) Average speed A and B up to 199 km/h or 160 mph Brightness of speedometer illumination adjustable 5 times Background color selectable (8 colors) Fuel level indicator digital (When the fuel level is low, the bar indicator flashes and the reserve indicator lights up) Time (12h/24h) Temperature up to 250° or 32°-482° F. for cylinder head. An external temperature sensor for the spark plug is supplied Data storage of top speed , top rpm and temperature Distance and acceleration measurement: distance measurement measures the time of a freely selectable distance from 0 to 1000 meters / speed measurement measures the time of a freely selectable initial and final speed.
Tachometer/Speedometer for Vespa GTS/GTS Super 300cc FL ('14-), silver
for Vespa GTS/GTS Super 300cc FL ('14-), also fits Vespa GTS/GTS Super 125 ('14-'16), Euro3 models only. The SIP speedometer / tachometer replaces the standard very sparsely equipped speedometer with a real multifunctional device. The speedometer impresses with its large analog display for speed (up to 160kmh) and rpm (up to 16,000 rpm). Accordingly, the speedometer needle displays either RPM or speed. The lower digital display can optionally show 18 functions. These can be switched over at the push of a button. In addition to the standard functions such as analog / digital speed display, trip & total kilometers, temperature, the speedometer has an analog & digital tachometer, digital fuel and temperature display, accelerometer for distance and speed measurement, average speed and many other features (see function list). The backlight can be selected from eight different colors. The brightness can also be regulated separately. Before each restart, the instrument performs a complete self-test. The speed pickup is done as original via the speed pickup integrated in the wiring harness or can be transmitted via a digital speed sensor. The appropriate sensors are available as accessories. A cable set for connection to the vehicle is included. This is connected between the speedometer and the wiring harness. Everything without soldering, simple and uncomplicated. Setting and switching between functions is done via the original "Mode" button on the vehicle. Dial: black Numerals: white Speedometer bezel: silver Functions: Speed analog : 0 - 160 km/h (0 - 160 mph) Speed digital : 0 - 260 km/h Speed analog : 0 - 16.000 rpm Speed digital : 0 - 16.000 rpm Odometer total : 0000 - 99999 km (miles) Trip odometer A and B : up to 9999,9 km/ miles Driving time A and B up to 99,59 h Battery voltage display (incl. low voltage warning) Odometer reading adjustable (old speedometer reading can be transferred with it) Average speed A and B up to 199 km/h or 160 mph Brightness of speedometer illumination adjustable 5 times Background color selectable (8 colors) Fuel level indicator digital (When the fuel level is low, the bar indicator flashes and the reserve indicator lights up) Time (12h/24h) Temperature up to 250° or 32°-482° F. for cylinder head. An external temperature sensor is supplied for the spark plug Data storage of top speed , top rpm and temperature Distance and acceleration measurement: distance measurement measures the time of a freely selectable distance from 0 to 1000 meters / speed measurement measures the time of a freely selectable initial and final speed.
Temperature gauge 2 and 4 stroke engines for Vespa GTS/GTV 300cc ('19-)
-25°C - +250°C (-13°F - +482°F) Ø 69x32x16 mm Connection: 2x M10x1mm for tuned engines
Temperature sender for Vespa GTS/GTV 300cc ('19-)
for M5817491B/ M5817540B Connection: M10x1mm for tuned engines
